Middle East B2B Directory - YD-SPA/F300R-5C Five Color Automatic Roll-to-Roll Screen Printing Mach, Product by Roslie Machinery Co., Ltd
Promote your Business in the Middle East. Join FREE!
Manufacturers  Distributors / Wholesalers  Trading Companies  Agents  Buying Offices  Importers / Exporters
Product Details

YD-SPA/F300R-5C Five Color Automatic Roll-to-Roll Screen Printing Mach

Roslie Machinery Co., Ltd
Request Buy Information Now!
Get Contact Details Now!

Product Description:

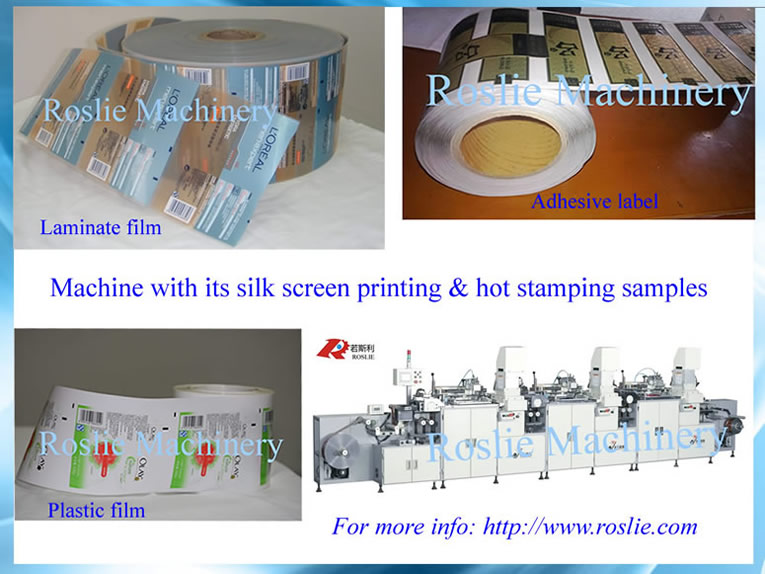

Click to view full size photo!

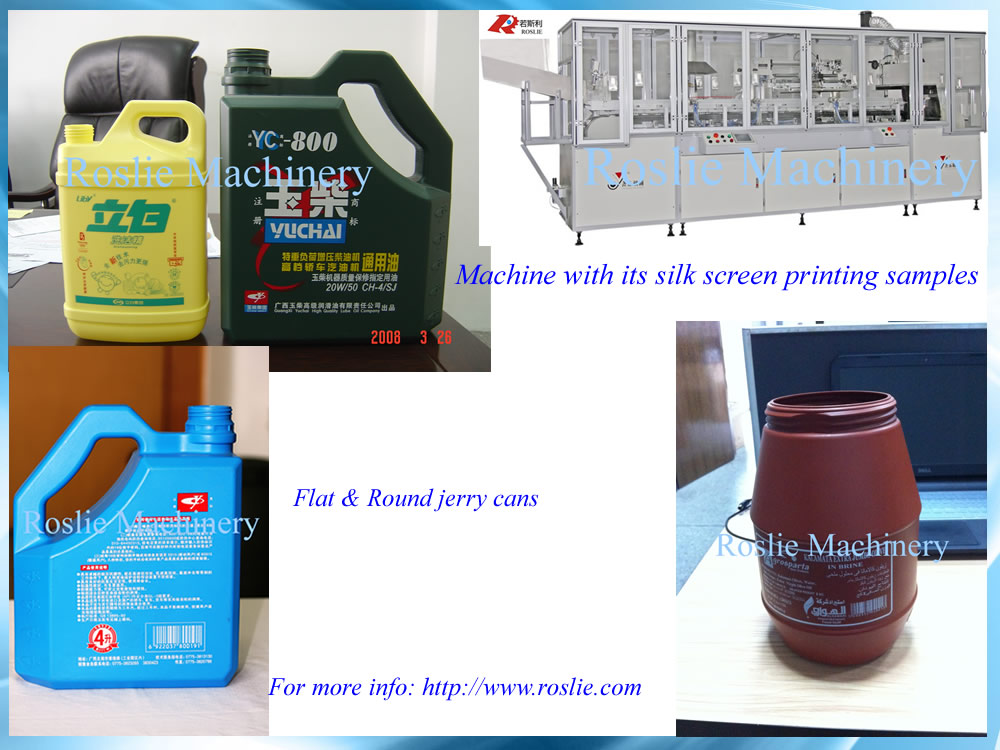

Click to view full size photo!

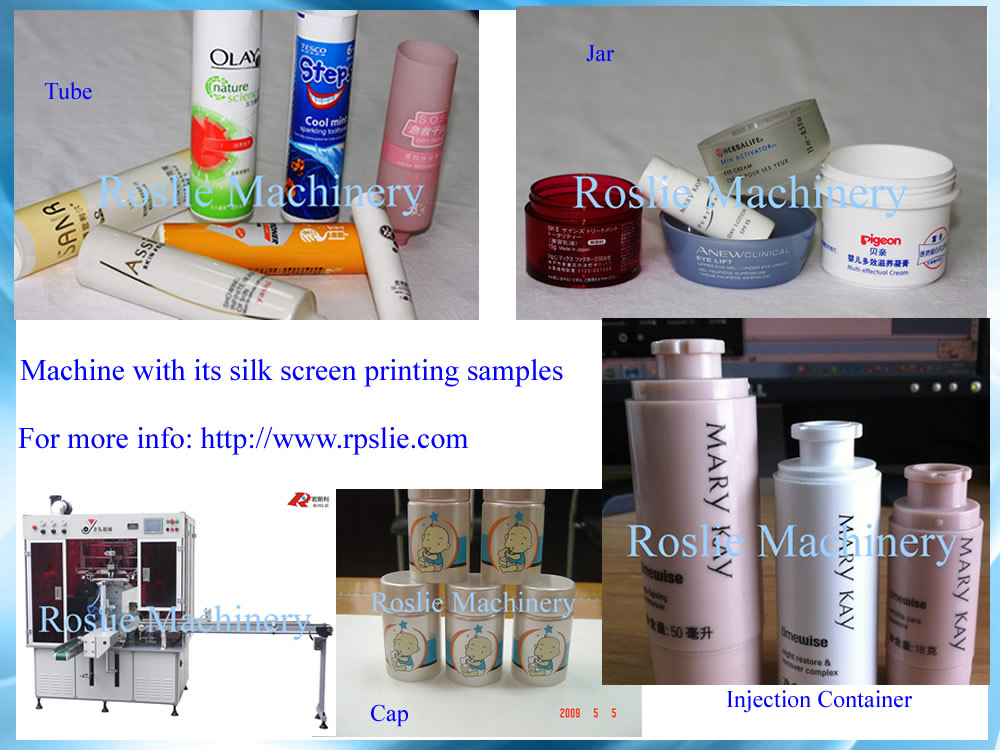

Click to view full size photo!
Click to view full size photo!
This machine is specially designed to print kinds of roll material such as film switch, flexible circuit, heat transfer film, cloth, feather with kinds of material such as PVC, PET, PP, PC etc..
◇ Each modular machine is independent and easy to install the hot stamping device to realize the combination of offset printing, screen printing and hot stamping technology.
◇ Each modular machine synchronous drive supported by Servo & Sensor registration system automatic Guiding System and Tension Control System to overcome the inaccurate registration between colors, in this way to ensure the printing quality.
◇ This machine is controlled by famous brand PLC and Touch screen from Japan and supported by internationally reputed components to drive to ensure the machine operation simple and running stable.
◇ Fusion system from U.S.A. to guarantee the excellent ink curing effect and eliminate the ink fall.
◇ Equipped with kinds of monitor system to protect the machine system and ensure the machine running security.
◇ We can customize machine according to the special products.

Maximum Width of the Roll Goods:300mm
Maximum Screen Frame Size(LW):350mm350mm
Maximum Printing Area(LW):320mm250mm
Maximum Running Speed:75cycle/min
Power Consumption:50KW
Compressed Air Pressure Requirement:6-8bar
Power Requirement:380V 3Phase 50Hz
Machine Dimension(LWH):10600mm690mm1800mm
Total Weight:4500kg
Other Details:

Offered by: Roslie Machinery Co., Ltd (View Showroom, Create your own Showroom)
Place of Origin: China (More Products from China)
Stock Location: China
Quantity: 1SET
Packaging: Iron Box
Price: Not Specified
Product Seller Classification: Machinery & Electronics - Mechanical Machinery
More Buying Info: Request Buying Details
